Title: AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: DESCRIPTION (2008 LX570)

Mute Signal Circuit between Navigation Assembly and Multi-display Controller

DESCRIPTION

The multi-display selector controls the volume according to the mute signal from the display and navigation module display.

The mute signal is sent to reduce noise and a popping sound generated when switching the mode, etc.

HINT:

  • Only vehicles with a navigation system have this circuit.
  • "Multi-display Controller" refers to the multi-display selector.

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CHECK MULTI-DISPLAY SELECTOR


(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

L23-6 (MUT5) - Body ground

Engine switch on (ACC), audio system is playing → changing modes

3.5 V or higher → Below 1 V

OK

2.

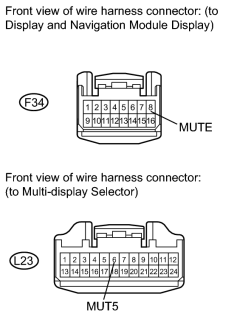

CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY - MULTI-DISPLAY SELECTOR)


(a) Disconnect the F34 navigation module display connector.

(b) Disconnect the L23 selector connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

F34-8 (MUTE) - L23-6 (MUT5)

Always

Below 1 Ω

F34-8 (MUTE) - Body ground

Always

10 kΩ or higher

OK
