Title: AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: DESCRIPTION (2008 LX570)

Television Display Power Source Circuit

DESCRIPTION

This circuit provides power to the television display. The power is sent from the battery to the television display through the multi-display selector.

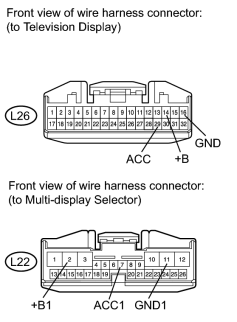

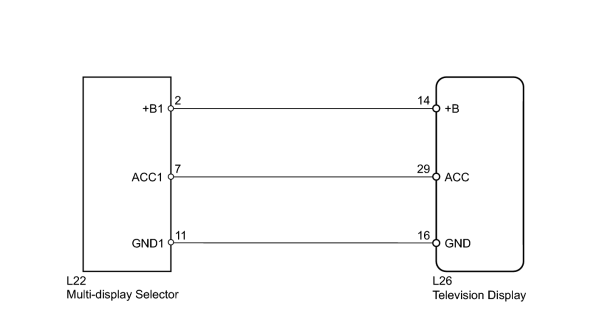

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CHECK TELEVISION DISPLAY ASSEMBLY


(a) Disconnect the L26 display connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L26-16 (GND) - Body ground

Always

Below 1 Ω

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

L26-14 (+B) - Body ground

Always

11 to 14 V

L26-29 (ACC) - Body ground

Engine switch on (ACC)

11 to 14 V

OK

2.

CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSEMBLY - MULTI-DISPLAY SELECTOR)


(a) Disconnect the L26 display connector.

(b) Disconnect the L22 selector connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L26-14 (+B) - L22-2 (+B1)

Always

Below 1 Ω

L26-29 (ACC) - L22-7 (ACC1)

L26-16 (GND) - L22-11 (GND1)

L26-14 (+B) - Body ground

Always

10 kΩ or higher

L26-29 (ACC) - Body ground

L26-16 (GND) - Body ground

OK
