Title: AUDIO / VIDEO: REAR SEAT ENTERTAINMENT SYSTEM: DESCRIPTION (2008 LX570)

Sound Signal Circuit between Multi-display Controller and Head-phone Terminal

DESCRIPTION

This is the sound signal circuit from the multi-display selector to the headphone terminal.

HINT:

"Multi-display Controller" refers to the multi-display selector.

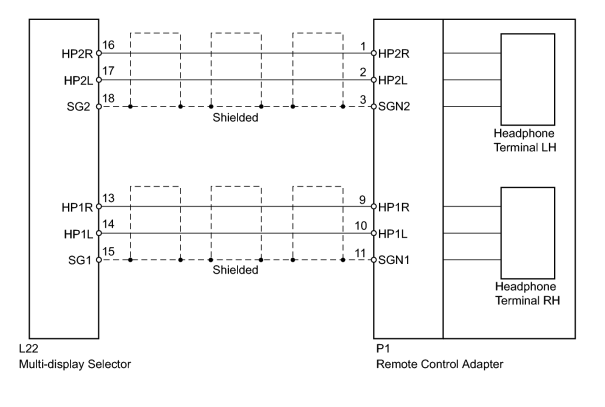

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CHECK REMOTE CONTROL ADAPTER ASSEMBLY


(a) Disconnect the P1 adapter connector.

(b) Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions shown in the chart below.

OK:

Tester Connection

Condition

Specified Condition

P1-1 (HP2R) - Body ground

Audio sound is being produced

A waveform synchronized with sound is output

P1-2 (HP2L) - Body ground

P1-9 (HP1R) - Body ground

P1-10 (HP1L) - Body ground

OK

2.

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY SELECTOR - REMOTE CONTROL ADAPTER)

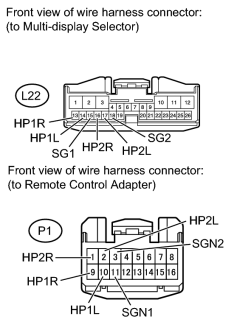

(a) Disconnect the L22 selector connector.

(b) Disconnect the P1 adapter connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

L22-16 (HP2R) - P1-1 (HP2R)

Always

Below 1 Ω

L22-17 (HP2L) - P1-2 (HP2L)

L22-18 (SG2) - P1-3 (SGN2)

L22-13 (HP1R) - P1-9 (HP1R)

L22-14 (HP1L) - P1-10 (HP1L)

L22-15 (SG1) - P1-11 (SGN1)

P1-1 (HP2R) - Body ground

Always

10 kΩ or higher

P1-2 (HP2L) - Body ground

P1-9 (HP1R) - Body ground

P1-10 (HP1L) - Body ground

OK
