Rear Blower Motor Circuit |
DESCRIPTION
The rear blower motor sub-assembly (with fan) is operated by signals from the air conditioning amplifier assembly. The rear blower motor sub-assembly (with fan) speed signals are transmitted by changes in the duty ratio.

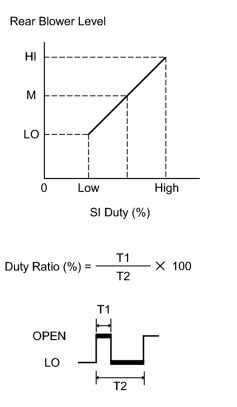

Duty Ratio:
The duty ratio is the ratio of the rear blower motor sub-assembly (with fan) OPEN time (T1) to the total of the rear blower motor sub-assembly (with fan) OPEN and LO time (T2).
The blower motor controller controls the rear blower motor sub-assembly (with fan) speed.

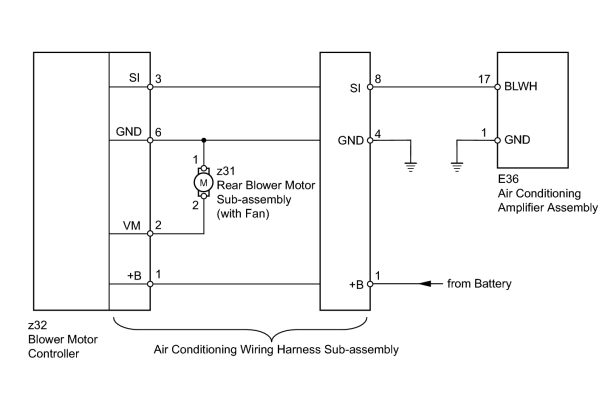

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
PERFORM ACTIVE TEST USING TECHSTREAM (REAR BLOWER MOTOR SUB-ASSEMBLY) |
(a) Select the Active Test, use the Techstream to generate a control command, and then check that the rear blower motor operates.
Air Conditioner
|
Tester Display |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Rear Blower Motor |
Rear blower motor sub-assembly (with fan) |
Min.: 0, Max.: 31 |
- |
Result
|
Result |
Proceed to |
|---|---|
|
Rear blower motor operates normally |
A |
|
Rear blower motor does not operate |
B |
|
Rear blower motor operates but does not change speed |
C |
|
|
2. |
CHECK HARNESS AND CONNECTOR (AIR CONDITIONING WIRING HARNESS - BODY GROUND) |
(a) Disconnect the air conditioning wiring harness sub-assembly connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
4 (GND) - Body ground |
Always |
Below 1 Ω |
|
|
3. |
CHECK HARNESS AND CONNECTOR (AIR CONDITIONING WIRING HARNESS - BATTERY) |
(a) Disconnect the air conditioning wiring harness sub-assembly connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (+B) - Body ground |
Always |
11 to 14 V |
|
|
4. |
CHECK AIR CONDITIONING WIRING HARNESS SUB-ASSEMBLY (SI VOLTAGE) |
(a) Disconnect the E36 amplifier connector.
(b) Reconnect the air conditioning wiring harness sub-assembly connector.
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
8 (SI) - Body ground |
Engine switch on (IG) |
4.5 to 5.5 V |
|
|
5. |
CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - AIR CONDITIONING WIRING HARNESS) |

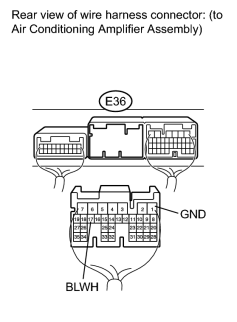

(a) Disconnect the E36 amplifier connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E36-17 (BLWH) - E36-1 (GND) |
Engine switch on (IG) Blower switch off |
4.5 to 5.5 V |
|
|
6. |
CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY (BLWH SIGNAL) |
|
(a) Remove the air conditioning amplifier assembly with its connectors still connected
|

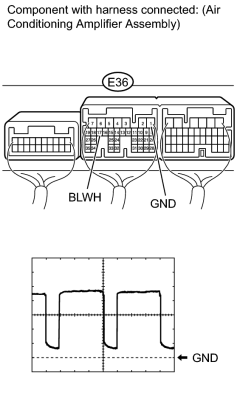

(b) Using an oscilloscope, check the waveform.
Measurement Condition
|
Item |
Content |
|---|---|
|
Terminal No. (Symbol) |
E36-17 (BLWH) - E36-1 (GND) |
|
Tool Setting |
1 V/DIV., 500 μs/DIV. |
|
Condition |
Engine switch on (IG) Blower switch off → on |
OK:
Waveform is as shown in the illustration.
HINT:
Waveform varies with the blower level.
|
|
7. |
CHECK AIR CONDITIONING WIRING HARNESS SUB-ASSEMBLY (OPERATION) |
(a) Replace the air conditioning wiring harness sub-assembly with a normal one and check that the condition returns to normal.
OK:
Same problem does not occur.
|
|
8. |
INSPECT REAR BLOWER MOTOR SUB-ASSEMBLY (WITH FAN) |
|

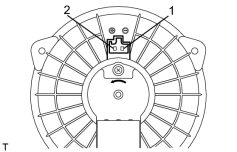

(a) Disconnect the z31 motor connector. |
(b) Connect the positive (+) lead of the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the rear blower motor operates smoothly.
OK:
The rear blower motor operates smoothly.
|
|
|
