| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Sliding Roof/Convertible | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002LPC00BX |
| Title: SLIDING ROOF / CONVERTIBLE: SLIDING ROOF HOUSING: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. REMOVE SLIDING ROOF LOCK CATCH PLATE LH
2. REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
|
(a) Detach the bracket claw and remove the bracket. |
|
(b) Remove the 2 bolts, room light bracket and drive gear. |
3. REMOVE SUNSHADE TRIM SUB-ASSEMBLY
(a) Remove the 2 screws.
(b) Detach the 4 claws and remove the sliding roof piece LH and RH.
(c) Slide and remove the trim.
4. REMOVE SLIDING ROOF SUNSHADE STOPPER LH
|
(a) Remove the stopper. |
5. REMOVE SLIDING ROOF SUNSHADE STOPPER RH
HINT:
Use the same procedures described for the LH side.
6. REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
NOTICE:
Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.
|
(a) Remove the 2 screws and 2 stoppers. |
|

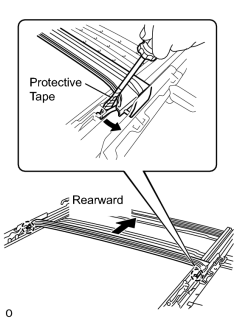

(b) Using a screwdriver, detach the 2 claws and slide the rear roof drip channel rearward to remove it. HINT:
Tape the screwdriver tip before use. |
|
(c) Hold down the window deflector. |
|
(d) Place matchmarks on the sliding roof drive cable sub-assembly at locations A and B as shown in the illustration. |
|
(e) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it. HINT:
Tape the screwdriver tip before use. |
|
|
