1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

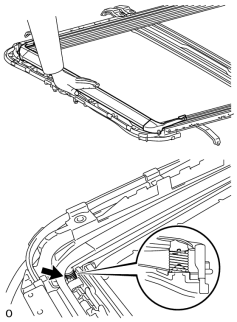

(a) Hold down the window deflector.

NOTICE:

Make sure that the spring indicated by the arrow in the illustration is securely installed.

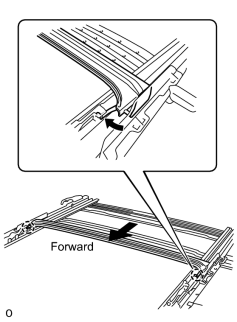

(b) Using a screwdriver, slide the drive cable in the direction indicated by the arrow in the illustration to install it. HINT: Tape the screwdriver tip before use.

(c) Slide the rear roof drip channel forward and attach the 2 claws to install it.

(d) Install the 2 stoppers with the 2 screws.

2. ADJUST SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

(a) Using a screwdriver, align the matchmarks by sliding the drive cable in the directions indicated by the arrow in the illustration.

HINT:

Tape the screwdriver tip before use.

3. INSTALL SLIDING ROOF SUNSHADE STOPPER LH

(a) Install the stopper.

4. INSTALL SLIDING ROOF SUNSHADE STOPPER RH

HINT:

Use the same procedures described for the LH side.

5. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

(a) Insert the sunshade trim into the sliding roof housing.

(b) Attach the 4 claws to install the sliding roof piece LH and RH.

(c) Install the 2 screws.

6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

(a) Install the drive gear and room light bracket with the 2 bolts.

Torque: 5.4 N·m (55 kgf·cm, 48 in·lbf)

(b) Attach the bracket claw to install the bracket.

7. INSTALL SLIDING ROOF LOCK CATCH PLATE LH
