| Last Modified: 11-27-2007 | 1.6 N | |
| Service Category: Vehicle Exterior | Section: Wiper/Washer | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002M6H00DX |
| Title: WIPER / WASHER: WASHER NOZZLE (for Front Side): ADJUSTMENT (2008 LX570) | ||
ADJUSTMENT

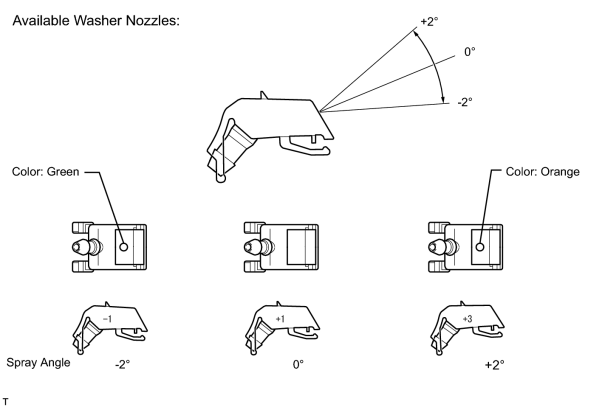

1. ADJUST WASHER NOZZLE SUB-ASSEMBLY
(a) Select a washer nozzle so that the contact area is within the standard area. Replace the washer nozzle with the selected one.
|
|
