ON-VEHICLE INSPECTION
1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

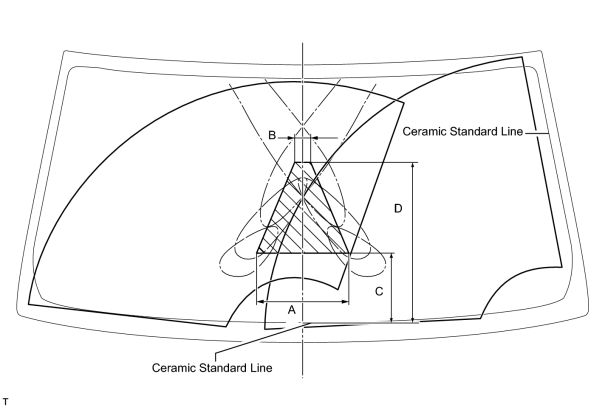

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.
OK:
Washer fluid hits the windshield in the area shown in the illustration.
If the result is not as specified, replace the washer nozzle.
Standard:
|
Area |
Specified Condition |
|---|---|
|
A |
253.2 mm (9.97 in.) |
|
B |
41.4 mm (1.63 in.) |
|
C |
192.9 mm (7.59 in.) |
|
D |
444.0 mm (17.48 in.) |
|
|
