ON-VEHICLE INSPECTION
1. INSPECT REAR WASHER NOZZLE

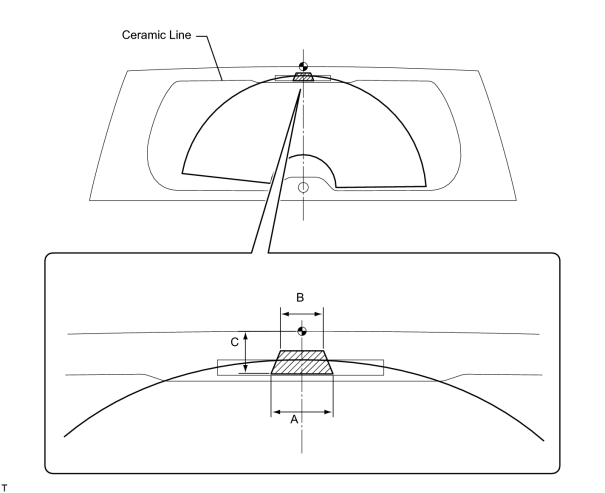

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched area shown in the illustration.
Standard:
Washer fluid hits the windshield in the area shown in the illustration.
If the result is not as specified, replace the washer nozzle.
Standard:
|
Area |
Specified Condition |
|---|---|
|
A |
65.8 mm (2.59 in.) |
|
B |
40.5 mm (1.59 in.) |
|
C |
44.9 mm (1.77 in.) |
If the result is not as specified, replace the rear washer nozzle.
|
|
