| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Engine/Hybrid System | Section: Cruise Control | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002MC0007X |
| Title: CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY

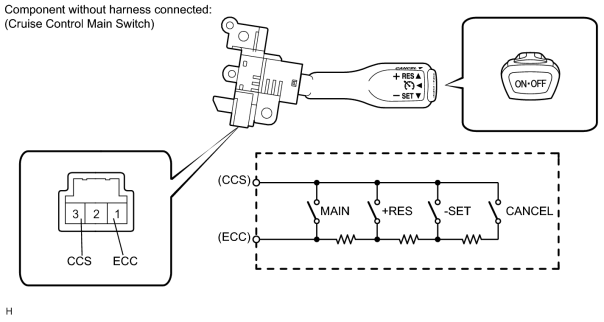

(a) Measure the resistance (for vehicles without vehicle-to-vehicle distance control mode).
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
1 (ECC) - 3 (CCS) |
Neutral |
1 MΩ or higher |
|
1 (ECC) - 3 (CCS) |
+RES |
235 to 245 Ω |
|
1 (ECC) - 3 (CCS) |
-SET |
620 to 640 Ω |
|
1 (ECC) - 3 (CCS) |
CANCEL |
1510 to 1570 Ω |
|
1 (ECC) - 3 (CCS) |
Main switch off |
1 MΩ or higher |
|
1 (ECC) - 3 (CCS) |
Main switch on |
Below 2.5 Ω |
If the result is not as specified, replace the cruise control main switch assembly.

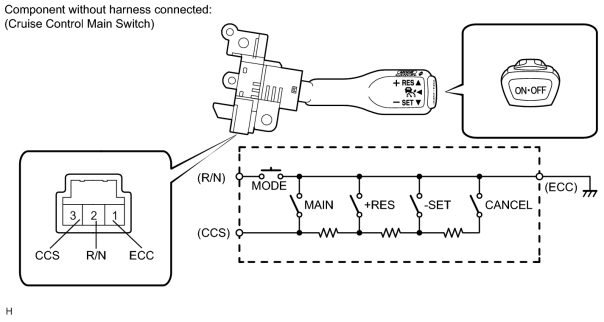

(b) Measure the resistance (for vehicles with vehicle-to-vehicle distance control mode).
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
1 (ECC) - 2 (R/N) 1 (ECC) - 3 (CCS) |
Neutral |
1 MΩ or higher |
|
1 (ECC) - 3 (CCS) |
+RES |
235 to 245 Ω |
|
1 (ECC) - 3 (CCS) |
-SET |
620 to 640 Ω |
|
1 (ECC) - 3 (CCS) |
CANCEL |
1510 to 1570 Ω |
|
1 (ECC) - 3 (CCS) |
Main switch off |
1 MΩ or higher |
|
1 (ECC) - 3 (CCS) |
Main switch on |
Below 2.5 Ω |
|
3 (CCS) - 2 (R/N) |
Main switch on and mode switch on |
Below 2.5 Ω |
If the result is not as specified, replace the cruise control main switch assembly.
|
|
