Title: AUDIO / VIDEO: FRONT DOOR SPEAKER: INSTALLATION (2008 LX570)

INSTALLATION

HINT:

  • Use the same procedures for the LH side and RH side.
  • The procedures listed below are for the LH side.

1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

(a) Connect the speaker connector.

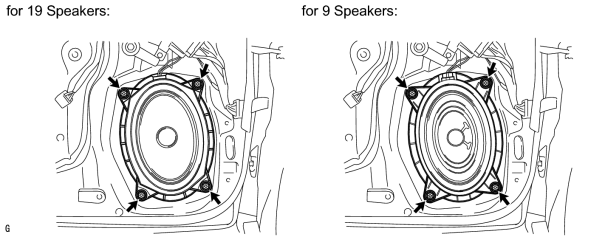

(b) Install the speaker with the 4 screws.

NOTICE:

Do not touch the cone part of the speaker.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH DOOR / HATCH: FRONT DOOR: REASSEMBLY (2008 LX570)+

3. INSTALL FRONT UPPER ARMREST BASE PANEL LH DOOR / HATCH: FRONT DOOR: REASSEMBLY (2008 LX570)+

4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH DOOR / HATCH: FRONT DOOR: REASSEMBLY (2008 LX570)+

5. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH DOOR / HATCH: FRONT DOOR: REASSEMBLY (2008 LX570)+

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION (2008 LX570) .

7. INSTALL ENGINE ROOM SIDE COVER LH EXTERIOR PANELS / TRIM: RADIATOR GRILLE: INSTALLATION (2008 LX570)+
