- A rear airbag sensor RH malfunction.
- A center airbag sensor malfunction.
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Vehicle Interior | Section: Supplemental Restraint Systems | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002NNB00NX |
| Title: SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
B1630/23 |
Rear Airbag Sensor RH Circuit Malfunction |
|
DTC |
B1695/16 |
Door Side Airbag Sensor LH Malfunction |
DESCRIPTION
HINT:
"Door side airbag sensor LH" refers to the side airbag sensor LH.
-
The side airbag sensor LH or rear airbag sensor RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.
If the center airbag sensor receives signals from the lateral deceleration sensor, it determines whether the SRS should be activated.
DTC B1630/23 or B1695/16 is stored when a malfunction is detected in the side airbag sensor LH or rear airbag sensor RH circuit.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B1630/23 |
When one of the following conditions is met: |
|
|
B1695/16 |
When one of following the conditions is met:
|
|

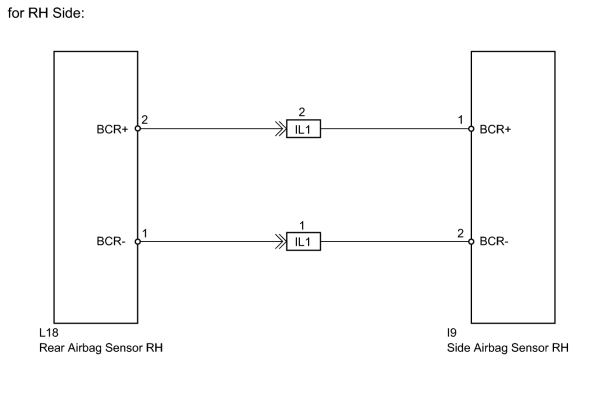

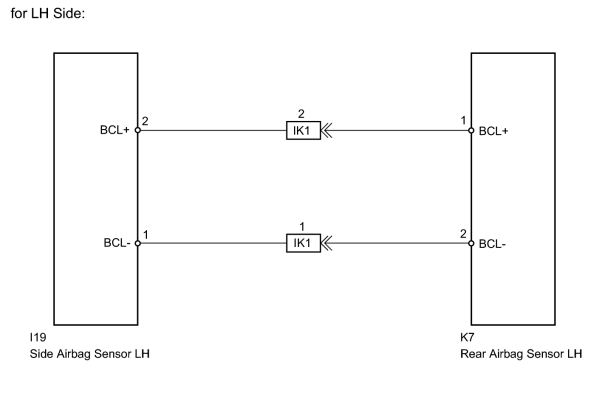

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
-
w/ Navigation system:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected
.
PROCEDURE
|
1. |
CHECK FOR DTC |
(a) Turn the engine switch on (IG).
(b) Clear the DTCs stored in the memory
.
(c) Turn the engine switch off.
(d) Turn the engine switch on (IG), and wait for at least 60 seconds.
(e) Check for DTCs
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC B1630 and B1695 are not output |
A |
|
DTC B1695 is output |
B |
|
DTC B1630 is output |
C |
|
|
2. |
CHECK REAR AIRBAG SENSOR RH |
(a) Turn the engine switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Temporarily replace the rear airbag sensor RH with a new one.
(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(e) Turn the engine switch on (IG), and wait for at least 60 seconds.
(f) Clear the DTCs stored in the memory
.
(g) Turn the engine switch off.
(h) Turn the engine switch on (IG), and wait for at least 60 seconds.
(i) Check for DTCs
.
OK:
DTC B1630 is not output.
HINT:
Codes other than DTC B1630 may be output at this time, but they are not related to this check.
|
|
3. |
CHECK SIDE AIRBAG SENSOR LH |
(a) Turn the engine switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Interchange the side airbag sensor RH with LH and connect the connectors to them.
(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(e) Turn the engine switch on (IG), and wait for at least 60 seconds.
(f) Clear the DTCs stored in the memory
.
(g) Turn the engine switch off.
(h) Turn the engine switch on (IG), and wait for at least 60 seconds.
(i) Check for DTCs
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC B1690 and B1695 are not output |
A |
|
DTC B1695 is output |
B |
|
DTC B1690 is output |
C |
HINT:
Codes other than DTC B1690 and B1695 may be output at this time, but they are not related to this check.
(j) Turn the engine switch off.
(k) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(l) Return the side airbag sensor RH and LH to their original positions and connect the connectors to them.
|
|
|
