| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Interior | Section: Supplemental Restraint Systems | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002OFG008X |
| Title: SUPPLEMENTAL RESTRAINT SYSTEMS: SEAT POSITION SENSOR: REMOVAL (2008 LX570) | ||
REMOVAL
1. REMOVE FRONT SEAT ASSEMBLY LH
(a) Remove the front seat assembly LH
.
2. REMOVE SEAT POSITION SENSOR
|

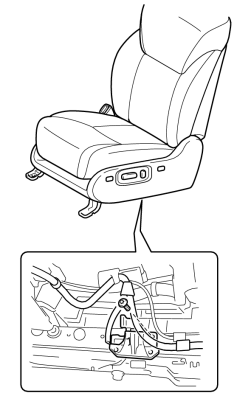

(a) Using a T30 "TORX" socket wrench, remove the screw and seat position sensor with sensor protector. |
(b) Disconnect the connector.
|
(c) Remove the seat slide position sensor protector from the seat position sensor. |
3. REMOVE FRONT SEAT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.
4. REMOVE SEAT POSITION SENSOR
|

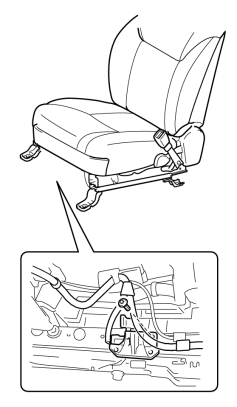

(a) Using a T30 "TORX" socket wrench, remove the screw and seat position sensor with sensor protector. |
(b) Disconnect the connector.
|
|
(c) Remove the seat slide position sensor protector from the seat position sensor. |
|
|
