| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Engine/Hybrid System | Section: Engine Mechanical | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002OP800EX |
| Title: 3UR-FE ENGINE MECHANICAL: CYLINDER HEAD: DISASSEMBLY (2008 LX570) | ||
DISASSEMBLY
1. REMOVE INTAKE VALVE
|
(a) Using SST and wooden blocks, compress the compression spring and remove the valve spring retainer locks. SST: 09202-70020 09202-00010 09202-01010 09202-01020 |
(b) Remove the retainer, compression spring and valve.
HINT:
Arrange the removed parts in the correct order.
2. REMOVE EXHAUST VALVE
|
(a) Using SST and wooden blocks, compress the compression spring and remove the valve spring retainer locks. SST: 09202-70020 09202-00010 09202-01010 09202-01020 |
(b) Remove the retainer, compression spring and valve.
HINT:
Arrange the removed parts in the correct order.
3. REMOVE VALVE STEM OIL SEAL
|
(a) Using needle-nose pliers, remove the oil seals. |
4. REMOVE VALVE SPRING SEAT
|
(a) Using compressed air and a magnetic finger, remove the valve spring seat by blowing air onto it. |

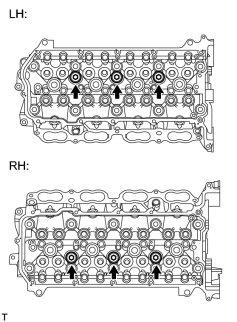

5. REMOVE NO. 1 STRAIGHT SCREW PLUG
NOTICE:
If water leaks from the No. 1 straight screw plug or the plug is corroded, replace it.
(a) Using a 10 mm hexagon wrench, remove the 6 screw plugs and 6 gaskets.

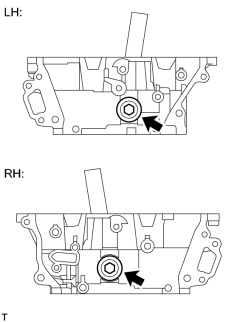

6. REMOVE NO. 2 STRAIGHT SCREW PLUG
NOTICE:
If water leaks from the No. 2 straight screw plug or the plug is corroded, replace it.
(a) Using a 14 mm hexagon wrench, remove the 2 screw plugs and 2 gaskets.
7. REMOVE STUD BOLT
NOTICE:
If the stud bolt is deformed or its threads are damaged, replace it.
|
|
