INSPECTION

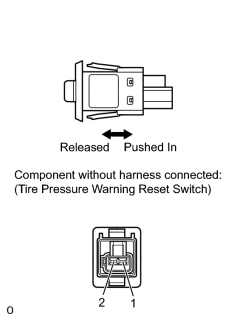

1. CHECK TIRE PRESSURE WARNING RESET SWITCH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
1 - 2 |
Switch released |
10 kΩ or higher |
|
1 - 2 |
Switch pushed in |
Below 1 Ω |
If the result is not as specified, replace the switch.
|
|
