ECU Power Source Circuit |
DESCRIPTION
This circuit provides power to the windshield wiper ECU and operates the front wiper motor.

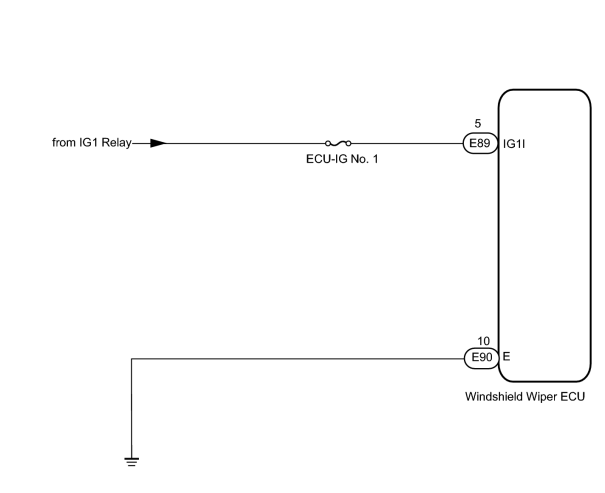

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (ECU-IG No. 1) |
(a) Remove the ECU-IG No. 1 fuse from the cowl side junction block LH.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
ECU-IG No. 1 fuse |
Always |
Below 1 Ω |
|
|
2. |
CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER ECU - BATTERY AND BODY GROUND) |
|

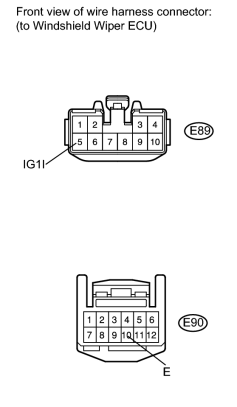

(a) Disconnect the E89 and E90 windshield wiper ECU connectors. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E89-5 (IG1I) - Body ground |
Engine switch on (IG) |
11 to 14 V |
|
E89-5 (IG1I) - Body ground |
Engine switch off |
Below 1 V |
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
E90-10 (E) - Body ground |
Always |
Below 1 Ω |
|
|
|
