Title: NETWORKING: CAN COMMUNICATION SYSTEM: DESCRIPTION (2008 LX570)

DTC

U1115

Lost Communication with Tilt and Telescopic Module

DESCRIPTION

DTC Code	DTC Detection Condition	Trouble Area
U1115	There is no communication from the multiplex tilt and telescopic ECU.	Power source circuit of multiplex tilt and telescopic ECU Multiplex tilt and telescopic ECU Multiplex tilt and telescopic ECU branch wire or connector

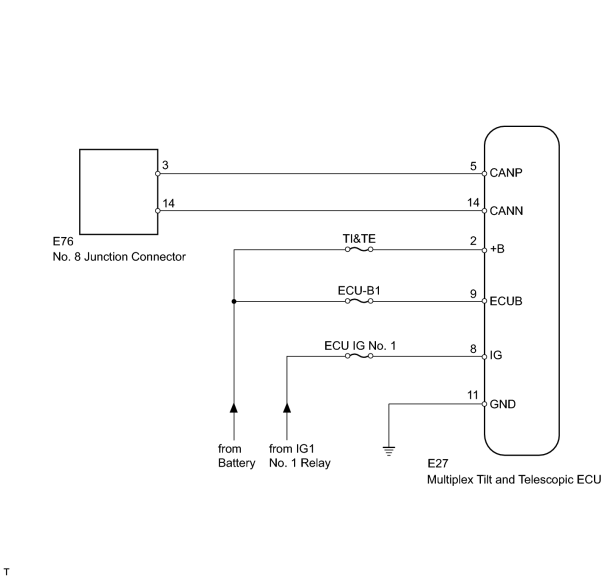

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1.	DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

(a) Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:

w/ Navigation System:

After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

2.	CHECK FOR OPEN IN CAN BUS WIRE (MULTIPLEX TILT AND TELESCOPIC ECU BRANCH WIRE)

(a) Disconnect the E27 multiplex tilt and telescopic ECU connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
E27-5 (CANP) - E27-14 (CANN)	Engine switch off	54 to 69 Ω

3.	CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY AND BODY GROUND)

(a) Connect the cable to the negative (-) battery terminal.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

(b) Disconnect the E27 multiplex tilt and telescopic ECU connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
E27-11 (GND) - Body ground	Always	Below 1 Ω

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
E27-2 (+B) - Body ground	Always	11 to 14 V
E27-9 (ECUB) - Body ground	Always	11 to 14 V
E27-8 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
