Multi-display Power Source Circuit |
DESCRIPTION
This circuit provides power to the multi-display.
HINT:
Only vehicles without a navigation system have this circuit.

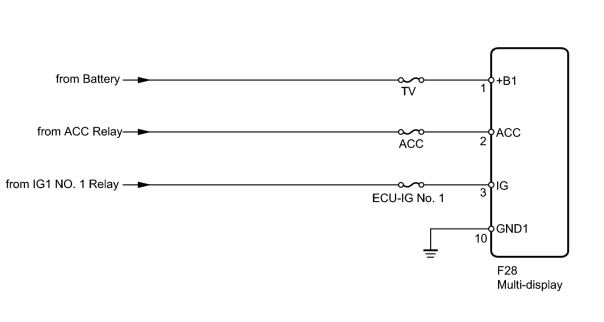

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (TV, ACC, ECU-IG No. 1) |
(a) Disconnect the ACC and ECU-IG No. 1 fuses from the main body ECU.
(b) Disconnect the TV fuse from the cowl side junction block RH.
(c) Measure the resistance according to the values in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
TV fuse |
Always |
Below 1 Ω |
|
ACC fuse |
||
|
ECU-IG No. 1 fuse |
|
|
2. |
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - BATTERY AND BODY GROUND) |
|
(a) Disconnect the F28 display connector. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F28-10 (GND1) - Body ground |
Always |
Below 1 Ω |
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F28-1 (+B1) - Body ground |
Always |
11 to 14 V |
|
F28-2 (ACC) - Body ground |
Engine switch on (ACC) |
11 to 14 V |
|
F28-3 (IG) - Body ground |
Engine switch on (IG) |
11 to 14 V |
|
|
|
