Home › Vehicle Exterior › Door/Hatch › BACK DOOR OPENER SWITCH
Last Modified: 11-27-2007 1.6 G
Service Category: Vehicle Exterior Section: Door/Hatch
Model Year: 2008 Model: LX570 Doc ID: RM000002QPK00BX
Title: DOOR / HATCH: BACK DOOR OPENER SWITCH: INSPECTION (2008 LX570)

INSPECTION

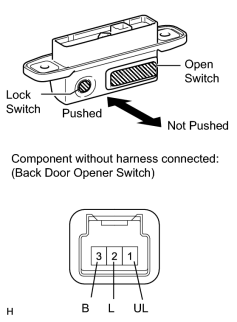

1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

1 (UL) - 2 (L)

Lock switch pushed

Below 1 Ω

1 (UL) - 2 (L)

3 (B) - 2 (L)

Lock switch and open switch not pushed

10 kΩ or higher

3 (B) - 2 (L)

Open switch pushed

Below 1 Ω

    If the result is not as specified, replace the back door opener switch assembly.
