INSPECTION
1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

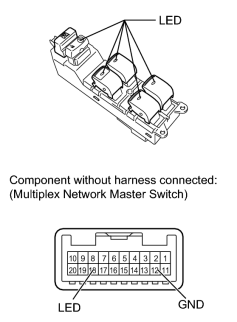

(a) Check that the LED illuminates.
(1) Apply battery voltage to the master switch and check that the LED illuminates.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 18 (LED) Battery negative (-) → 12 (GND) |
LED illuminates |
If the result is not as specified, replace the multiplex network master switch assembly.
|
|
