| Title: WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

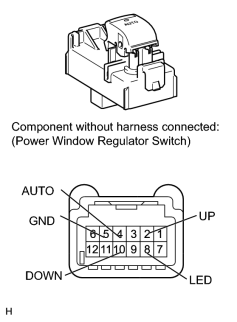

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
|
(a) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the power window regulator switch assembly. |
(b) Check that the LED illuminates.
(1) Apply battery voltage to the power window regulator switch and check that the LED illuminates.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 8 (LED) Battery negative (-) → 5 (GND) |
LED illuminates |
If the result is not as specified, replace the power window regulator switch assembly.
|
|
