| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Exterior | Section: Window/Glass | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002R1K00AX |
| Title: WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

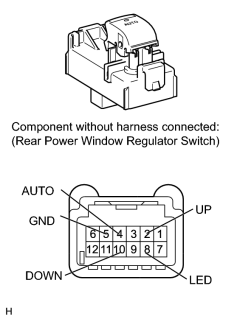

1. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
2 (UP) - 5 (GND) |
Manual up operation |
Below 1 Ω |
|
10 (DOWN) - 5 (GND) |
Manual down operation |
Below 1 Ω |
|
4 (AUTO) - 5 (GND) |
Auto up/down operation |
Below 1 Ω |
If the result is not as specified, replace the rear power window regulator switch assembly.
(b) Check that the LED illuminates.
(1) Apply battery voltage to the regulator switch and check that the LED illuminates.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 8 (LED) Battery negative (-) → 5 (GND) |
LED illuminates |
If the result is not as specified, replace the rear power window regulator switch assembly.
|
|
