Home › Vehicle Exterior › Lighting (ext) › LIGHTING SYSTEM
Last Modified: 11-27-2007 1.6 C
Service Category: Vehicle Exterior Section: Lighting (ext)
Model Year: 2008 Model: LX570 Doc ID: RM000002R6V007X
Title: LIGHTING (EXT): LIGHTING SYSTEM: DESCRIPTION (2008 LX570)

DTC

B2429

Steering Wheel Position Undecided

DESCRIPTION

The AFS ECU receives steering wheel position information (turned to the right or left) from the main body ECU via CAN communication.

DTC Code

DTC Detection Condition

Trouble Area

B2429

Steering wheel position information malfunction.
  • AFS ECU
  • Main body ECU

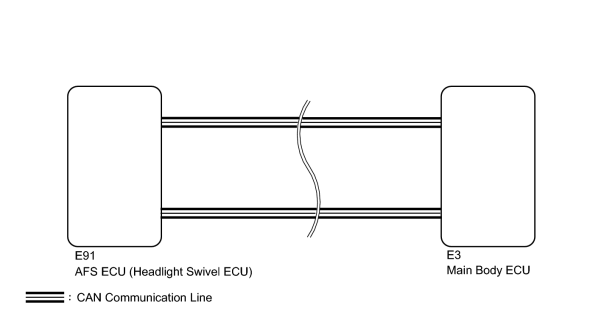

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

First perform the communication function inspections in How to Proceed with Troubleshooting to confirm that there are no CAN communication malfunctions before troubleshooting this symptom.

PROCEDURE

1.

CHECK FOR DTC

(a) Clear the DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2429 output does not occur.

OK

2.

CHECK AFS ECU (OPERATION)

(a) Temporarily replace the AFS ECU with a new or normally functioning one LIGHTING (EXT): AFS ECU: REMOVAL (2008 LX570) .

(b) Check for DTCs LIGHTING (EXT): LIGHTING SYSTEM: DTC CHECK / CLEAR (2008 LX570) .

OK:

DTC B2429 output does not occur.

OK
