Title: SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570)

SYSTEM DIAGRAM

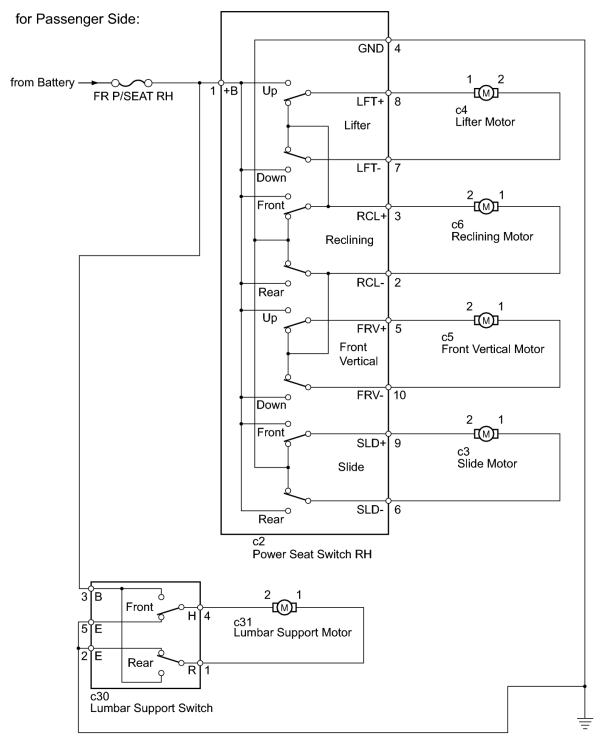

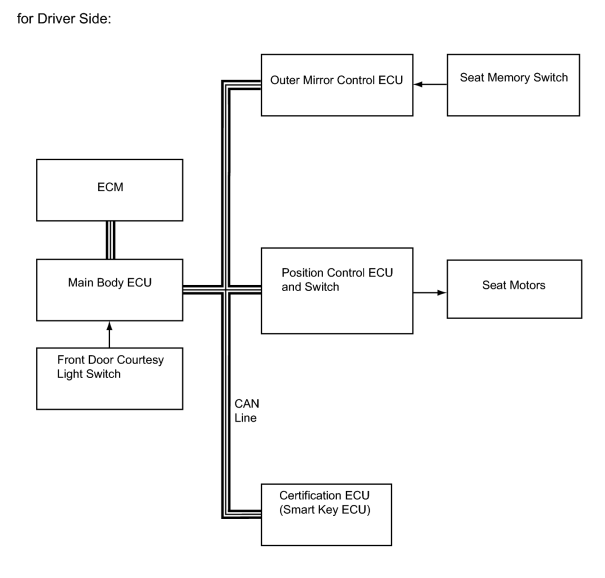

Communication Table

Sender

Receiver

Signal

Line

ECM

Position Control ECU and Switch

Shift position signal

CAN

Outer Mirror Control ECU

Position Control ECU and Switch
  • Seat memory switch 1 signal
  • Seat memory switch 2 signal
  • Seat memory switch 3 signal

CAN

Main Body ECU

Position Control ECU and Switch

Driver door courtesy light switch signal

CAN

Certification ECU (Smart Key ECU)

Position Control ECU and Switch
  • Door lock/unlock signal
  • Key ID signal

CAN

Position Control ECU and Switch

Outer Mirror Control ECU
  • Seat memory switch 1 command signal
  • Seat memory switch 2 command signal
  • Seat memory switch 3 command signal

CAN
