Satellite Radio Tuner Power Source Circuit |
DESCRIPTION
This is the power source circuit to operate the satellite radio tuner.

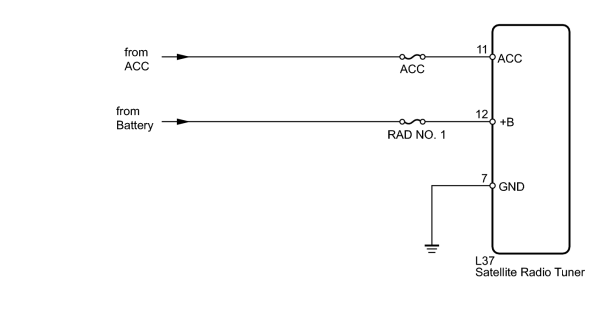

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
INSPECT FUSE (ACC, RAD NO. 1) |
(a) Remove the ACC fuse from the engine room relay block.
(b) Remove the RAD NO. 1 fuse from the cowl side junction block LH.
(c) Measure the resistance of according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
ACC fuse |
Always |
Below 1 Ω |
|
RAD NO. 1 fuse |
Always |
Below 1 Ω |
|
|
2. |
CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - BATTERY AND BODY GROUND) |
|
(a) Disconnect the L37 tuner connector. |
(b) Measure the resistance of according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
L37-7 (GND) - Body ground |
Always |
Below 1 Ω |
(c) Measure the voltage of according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
L37-12 (+B) - L37-7 (GND) |
Always |
11 to 14 V |
|
L37-11 (ACC) - L37-7 (GND) |
Engine switch on (ACC) |
11 to 14 V |
|
|
|
