Title: LIGHTING (EXT): LIGHTING SYSTEM: WIRING DIAGRAM (2008 LX570)

Personal Light does not Illuminate

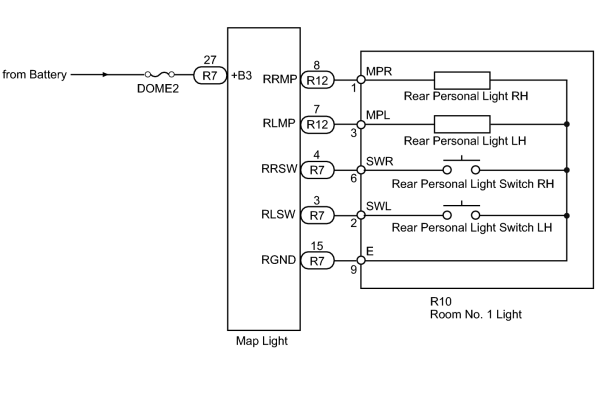

WIRING DIAGRAM



INSPECTION PROCEDURE

PROCEDURE

1.

CONFIRM LIGHT POSITION

(a) Check the malfunctioning personal light.

Result

Result

Proceed to

Rear personal light

A

Front personal light

B

A

2.

CHECK HARNESS AND CONNECTOR (MAP LIGHT - BATTERY)



(a) Disconnect the R7 light connector.

(b) Measure the voltage to the according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

R7-27 (+B3) - Body ground

Always

11 to 14 V

OK

3.

INSPECT ROOM NO. 1 LIGHT



(a) Remove the room No. 1 light connector LIGHTING (INT): ROOM LIGHT (for Front): ON-VEHICLE INSPECTION (2008 LX570) .

(b) Apply battery voltage to the connector, and check the illumination condition.

OK:

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 1 (MPR)

Battery negative (-) → Terminal 9 (E)

Illuminates

Battery positive (+) → Terminal 3 (MPL)

Battery negative (-) → Terminal 9 (E)

Illuminates

Result

Proceed to

OK

A

NG (w/ Rear Seat Entertainment System)

B

NG (w/o Rear Seat Entertainment System)

C

A

4.

CHECK HARNESS AND CONNECTOR (MAP LIGHT - ROOM NO. 1 LIGHT)

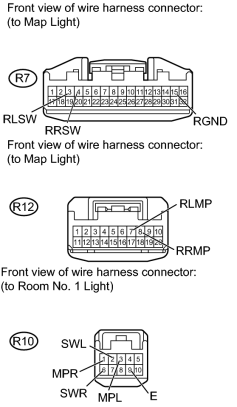

(a) Disconnect the R7, R12 and R10 light connectors.

(b) Measure the resistance to the according value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

R7-15 (RGND) - R10-9 (E)

Always

Below 1 Ω

R7-3 (RLSW) - R10-2 (SWL)

R7-4 (RRSW) - R10-6 (SWR)

R12-7 (RLMP) - R10-3 (MPL)

R12-8 (RRMP) - R10-1 (MPR)

R7-15 (RGND) - Body ground

Always

10 kΩ or higher

R7-3 (RLSW) - Body ground

R7-4 (RRSW) - Body ground

R12-7 (RLMP) - Body ground

R12-8 (RRMP) - Body ground

OK
