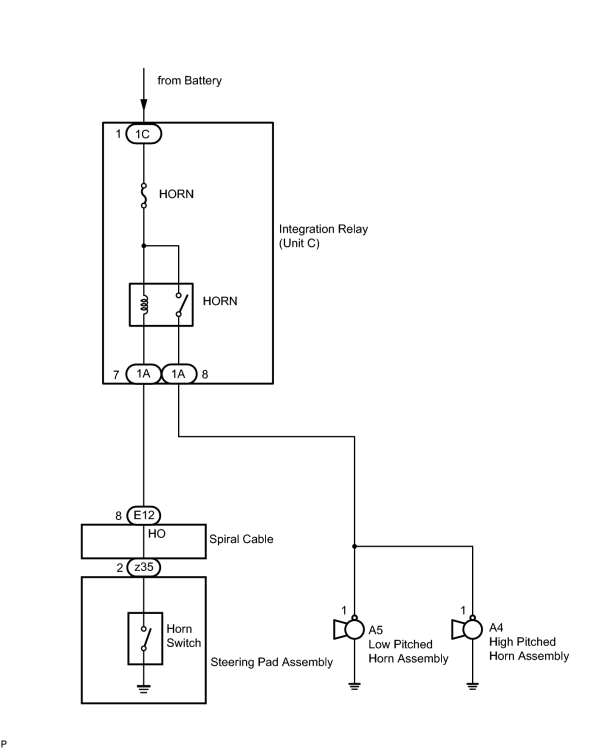

HORN: HORN SYSTEM: SYSTEM DIAGRAM (2008 LX570)

Home › Vehicle Exterior › Horn › HORN SYSTEM

Last Modified: 11-27-2007		1.6 U
Service Category: Vehicle Exterior	Section: Horn
Model Year: 2008	Model: LX570	Doc ID: RM000002W3F006X
Title: HORN: HORN SYSTEM: SYSTEM DIAGRAM (2008 LX570)
