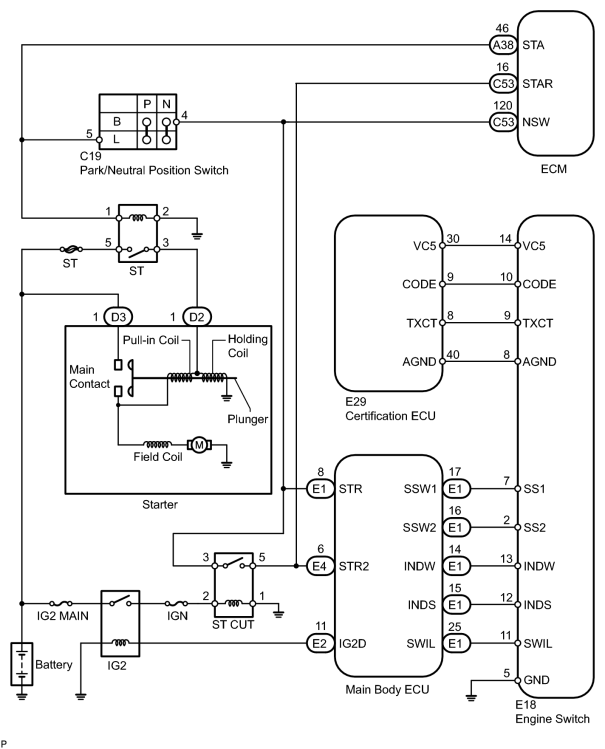

3UR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM (2008 LX570)

Home › Engine/Hybrid System › Starting › 3UR-FE STARTING: STARTING SYSTEM

Last Modified: 11-27-2007		1.6 U
Service Category: Engine/Hybrid System	Section: Starting
Model Year: 2008	Model: LX570	Doc ID: RM000002WBG009X
Title: 3UR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM (2008 LX570)
