| Title: 3UR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||
SYSTEM DIAGRAM

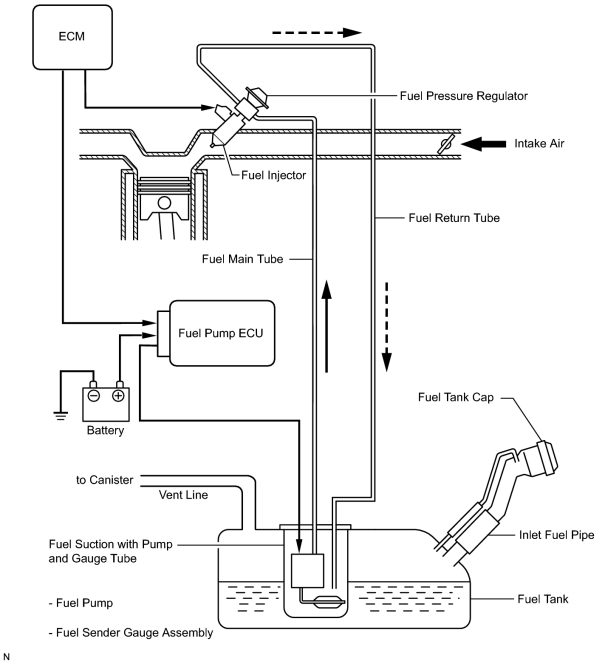

1. FUEL FLOW DIAGRAM

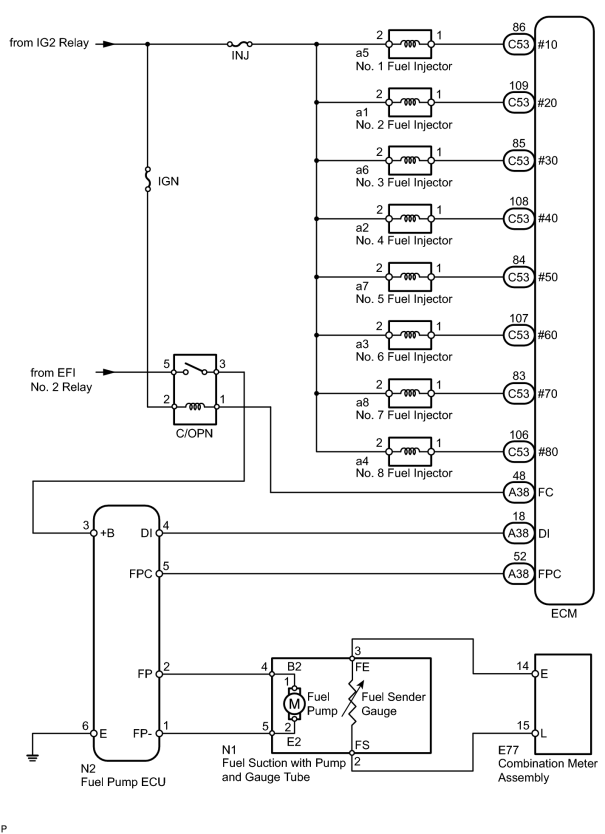

2. ELECTRICAL CONTROL DIAGRAM
|
|
