| Title: SEAT: SEAT MEMORY SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT SEAT MEMORY SWITCH

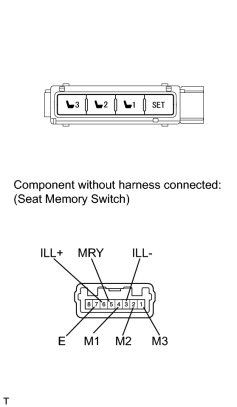

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
4 (M1) - 7 (E) |
Switch 1 pressed |
Below 1 Ω |
|
2 (M2) - 7 (E) |
Switch 2 pressed |
|
|
1 (M3) - 7 (E) |
Switch 3 pressed |
|
|
5 (MRY) - 7 (E) |
SET switch pressed |
If the result is not as specified, replace the seat memory switch.
(b) Apply battery voltage to the switch connector, and check that the seat memory switch illuminates.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 6 (ILL+) Battery negative (-) → 3 (ILL-) |
Switch illuminates |
If the result is not as specified, replace the seat memory switch.
|
|
