| Title: SEAT: POWER SEAT SWITCH (for Front Passenger Side): INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT FRONT POWER SEAT SWITCH RH

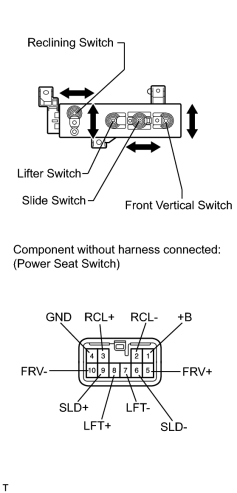

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Slide Switch
Front Vertical Switch
Lifter Switch
Reclining Switch
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
9 (SLD+) - 1 (+B) |
Front |
Below 1 Ω |
|
6 (SLD-) - 4 (GND) |
||
|
9 (SLD+) - 4 (GND) |
Off |
|
|
6 (SLD-) - 4 (GND) |
||
|
9 (SLD+) - 4 (GND) |
Rear |
|
|
6 (SLD-) - 1 (+B) |
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
5 (FRV+) - 1 (+B) |
Up |
Below 1 Ω |
|
10 (FRV-) - 4 (GND) |
||
|
5 (FRV+) - 4 (GND) |
Off |
|
|
10 (FRV-) - 4 (GND) |
||
|
5 (FRV+) - 4 (GND) |
Down |
|
|
10 (FRV-) - 1 (+B) |
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
8 (LFT+) - 1 (+B) |
Up |
Below 1 Ω |
|
7 (LFT-) - 4 (GND) |
||
|
8 (LFT+) - 4 (GND) |
Off |
|
|
7 (LFT-) - 4 (GND) |
||
|
8 (LFT+) - 4 (GND) |
Down |
|
|
7 (LFT-) - 1 (+B) |
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (RCL+) - 1 (+B) |
Front |
Below 1 Ω |
|
2 (RCL-) - 4 (GND) |
||
|
3 (RCL+) - 4 (GND) |
Off |
|
|
2 (RCL-) - 4 (GND) |
||
|
3 (RCL+) - 4 (GND) |
Rear |
|
|
2 (RCL-) - 1 (+B) |
If the result is not as specified, replace the front power seat switch.
|
|
