INSPECTION

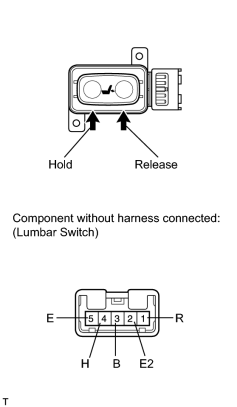

1. INSPECT LUMBAR SWITCH LH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (B) - 4 (H) |
Hold |
Below 1 Ω |
|
1 (R) - 2 (E2) |
||
|
1 (R) - 2 (E2) |
Off |
|
|
4 (H) - 5 (E) |
||
|
1 (R) - 3 (B) |
Release |
|
|
4 (H) - 5 (E) |
If the result is not as specified, replace the lumbar switch.

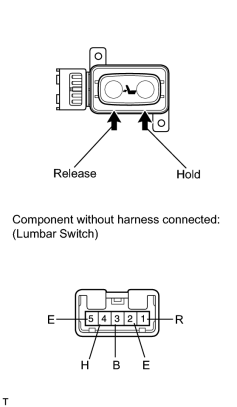

2. INSPECT LUMBAR SWITCH RH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (B) - 4 (H) |
Hold |
Below 1 Ω |
|
1 (R) - 2 (E) |
||
|
1 (R) - 2 (E) |
Off |
|
|
4 (H) - 5 (E) |
||
|
1 (R) - 3 (B) |
Release |
|
|
4 (H) - 5 (E) |
If the result is not as specified, replace the lumbar switch.
|
|
