| Title: SEAT: POWER SEAT SWITCH (for 60/40 Split Seat Type 60 Side): INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT REAR POWER SEAT SWITCH

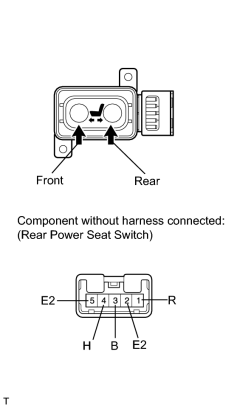

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
3 (B) - 4 (H) |
Front |
Below 1 Ω |
|
1 (R) - 2 (E2) |
||
|
1 (R) - 2 (E2) |
Off |
|
|
4 (H) - 5 (E2) |
||
|
1 (R) - 3 (B) |
Rear |
|
|
4 (H) - 5 (E2) |
If the result is not as specified, replace the rear power seat switch.
|
|
