| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Seat | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002XEW008X |
| Title: SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: INSPECTION (2008 LX570) | ||
INSPECTION

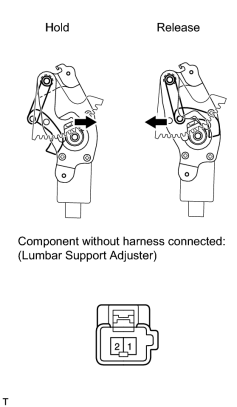

1. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
(a) Check the operation of the lumbar support adjuster.
(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 1 Battery negative (-) → 2 |
Hold |
|
Battery positive (+) → 2 Battery negative (-) → 1 |
Release |
If the result is not as specified, replace the lumbar support adjuster assembly.

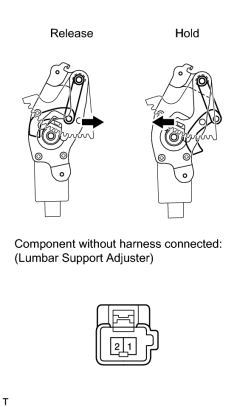

2. INSPECT LUMBAR SUPPORT ADJUSTER ASSEMBLY RH
(a) Check the operation of the lumbar support adjuster.
(1) Check if the lumbar support adjuster moves smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.
OK:
|
Measurement Condition |
Specified Condition |
|---|---|
|
Battery positive (+) → 2 Battery negative (-) → 1 |
Hold |
|
Battery positive (+) → 1 Battery negative (-) → 2 |
Release |
If the result is not as specified, replace the lumbar support adjuster assembly.
|
|
