| Title: SEAT: REAR SEAT CUSHION HEATER (for RH Side): INSPECTION (2008 LX570) | ||
INSPECTION

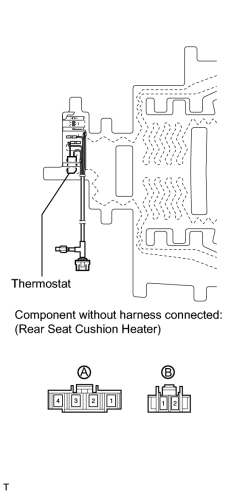

1. INSPECT REAR SEAT CUSHION HEATER ASSEMBLY RH
(a) Check the seat cushion heater.
(1) Heat the thermostat with a light.
(2) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A-1 - B-1 |
Seat cushion heater temperature 25°C (77°F) |
3.05 to 3.65 Ω |
|
A-4 - B-2 |
||
|
A-1 - A-4 |
||
|
A-2 - A-3 |
8 to 12 kΩ |
If the result is not as specified, replace the seat cushion heater assembly.
|
|
