| Last Modified: 11-27-2007 | 1.6 G | |
| Service Category: Vehicle Interior | Section: Theft Deterrent/Keyless Entry | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002XR7004X |
| Title: THEFT DETERRENT / KEYLESS ENTRY: ENGINE HOOD COURTESY SWITCH: INSPECTION (2008 LX570) | ||
INSPECTION

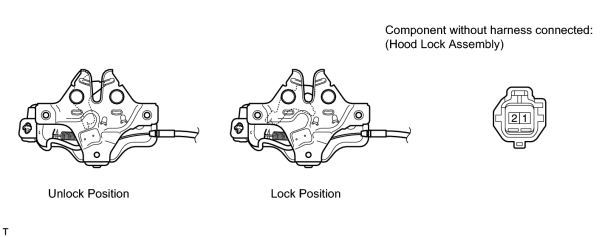

1. INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 - 2 |
Unlock |
Below 1 Ω |
|
1 - 2 |
Lock |
10 kΩ or higher |
If the result is not as specified, replace the hood lock assembly.
|
|
