Title: MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570)

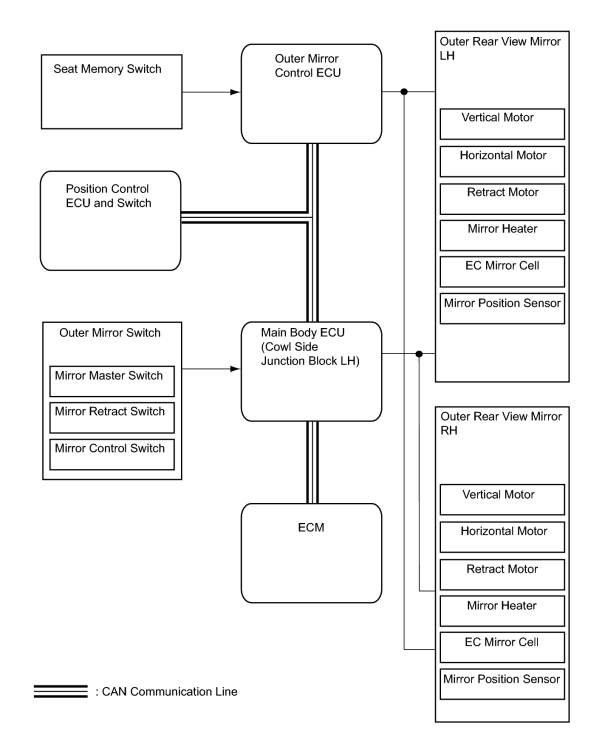

SYSTEM DIAGRAM



Communication Table

Sender

Receiver

Signal

Line

Main body ECU

Outer mirror control ECU
  • Mirror master switch signal
  • Mirror control switch signal
  • Mirror retract switch signal

CAN

Position control ECU and switch

Outer mirror control ECU
  • Mirror position storage signal
  • Mirror position reproduction signal

CAN

ECM

Outer mirror control ECU

Reverse signal

CAN
