| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Suspension | Section: Front Suspension | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002YGB006X |
| Title: FRONT SUSPENSION: FRONT SHOCK ABSORBER: REASSEMBLY (2008 LX570) | ||
REASSEMBLY
1. INSTALL FRONT COIL SPRING LH
(a) Using SST, compress the coil spring.
SST: 09727-30021
09727-00010
09727-00021
09727-00031
NOTICE:
- Do not compress the coil spring more than necessary.
- Do not use an impact wrench. It will damage SST.
|
(b) Install the coil spring to the shock absorber. HINT:
Fit the lower end of the coil spring into the recess of the spring seat of the shock absorber. |
2. INSTALL FRONT SUSPENSION SUPPORT SUB-ASSEMBLY LH
(a) Install the 2 cushions, 2 retainers and suspension support to the piston rod.
(b) Temporarily install a new front shock absorber nut to the suspension support.

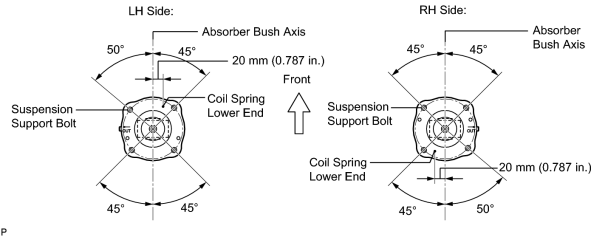

(c) Position the suspension support as shown in the illustration.
(d) Remove SST.
HINT:
Release the coil spring while checking the position of the suspension support.
NOTICE:
Do not use an impact wrench. It will damage the shock absorber rod.
3. TIGHTEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT
(a) Tighten the nut.
Torque: 65 N·m (663 kgf·cm, 48 ft·lbf)
|
|
