| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Engine/Hybrid System | Section: Emission Control | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002YNG00BX |
| Title: 3UR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||
SYSTEM DIAGRAM

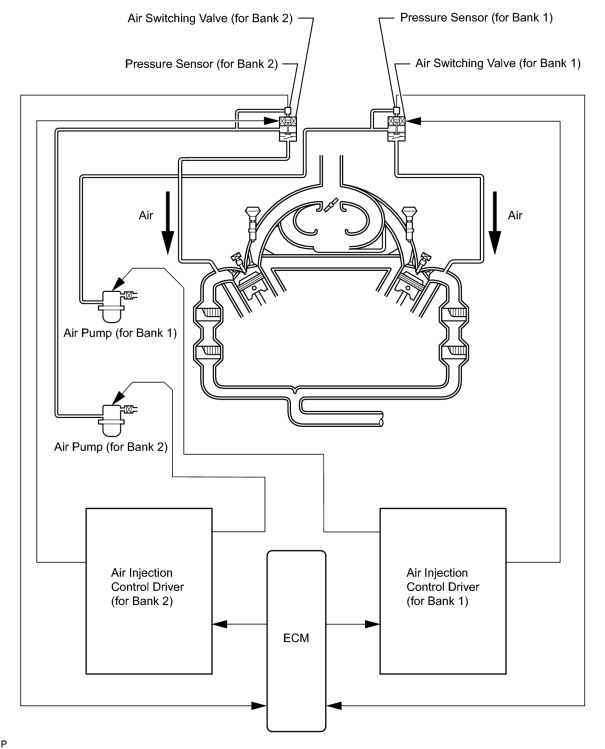

1. SECONDARY AIR INJECTION CONTROL SYSTEM DIAGRAM

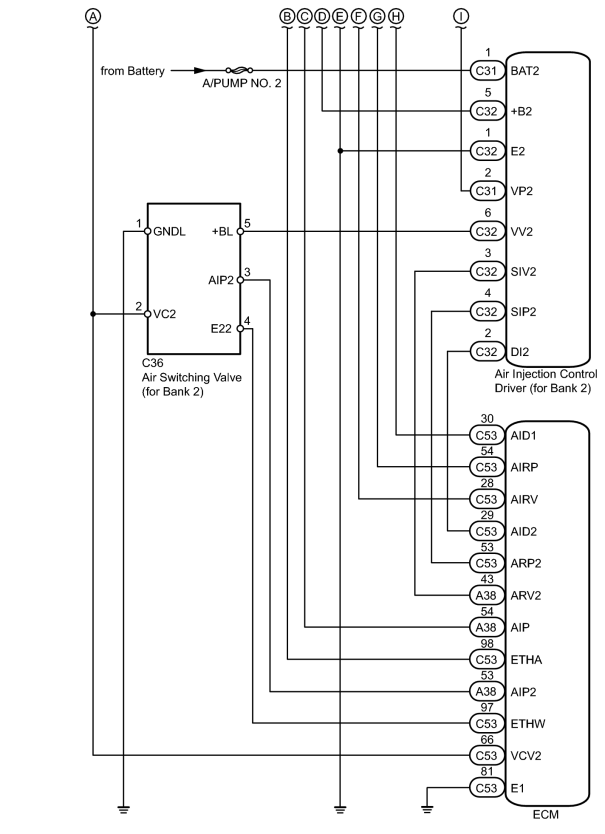

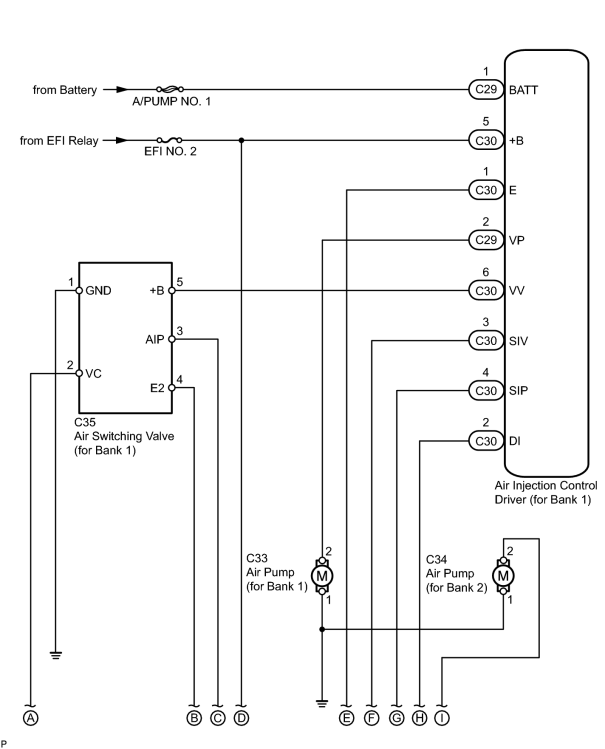

2. SECONDARY AIR INJECTION SYSTEM WIRING DIAGRAM

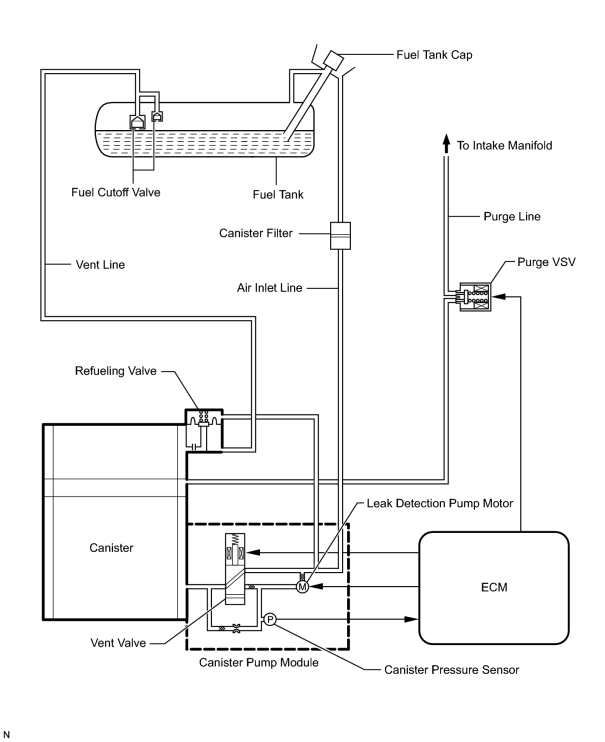

3. EVAP CONTROL SYSTEM DIAGRAM

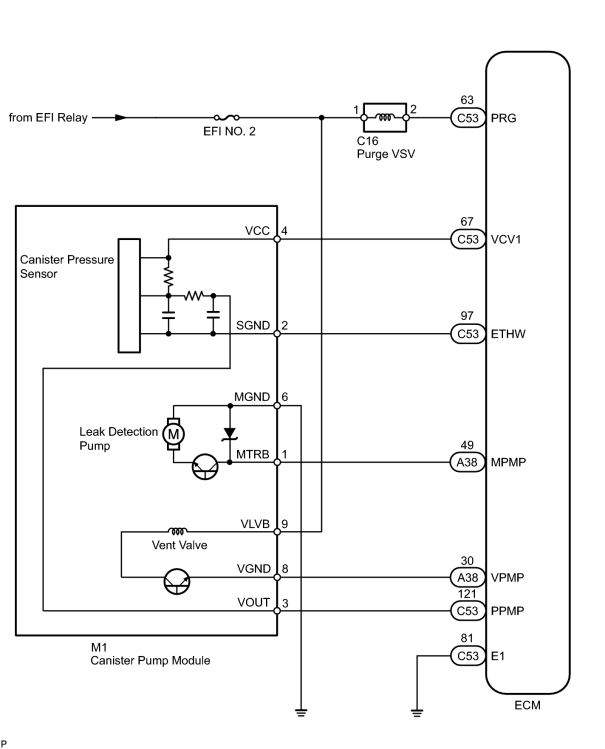

4. EVAP SYSTEM WIRING DIAGRAM
|
|
