Sound Signal Circuit between Radio Receiver and Multi-display |
DESCRIPTION
This is the sound signal circuit from the display and navigation module display to the radio receiver.

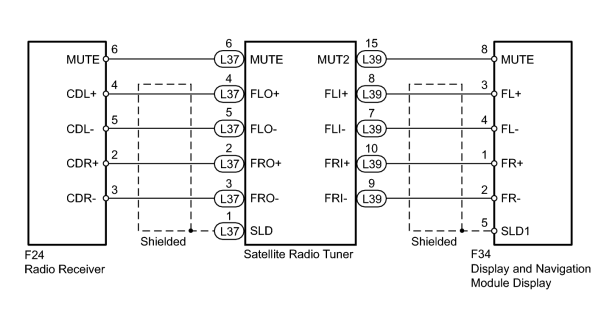

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |

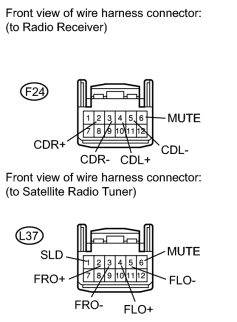

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER) |
|
(a) Disconnect the F24 receiver connector. |
(b) Disconnect the L37 tuner connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F24-2 (CDR+) - L37-2 (FRO+) |
Always |
Below 1 Ω |
|
F24-3 (CDR-) - L37-3 (FRO-) |
Always |
Below 1 Ω |
|
F24-4 (CDL+) - L37-4 (FLO+) |
Always |
Below 1 Ω |
|
F24-5 (CDL-) - L37-5 (FLO-) |
Always |
Below 1 Ω |
|
F24-6 (MUTE) - L37-6 (MUTE) |
Always |
Below 1 Ω |
|
L37-1 (SLD) - Body ground |
Always |
10 kΩ or higher |
|
F24-6 (MUTE) - Body ground |
Always |
10 kΩ or higher |
|
F24-2 (CDR+) - Body ground |
Always |
10 kΩ or higher |
|
F24-3 (CDR-) - Body ground |
Always |
10 kΩ or higher |
|
F24-4 (CDL+) - Body ground |
Always |
10 kΩ or higher |
|
F24-5 (CDL-) - Body ground |
Always |
10 kΩ or higher |
|
|
2. |

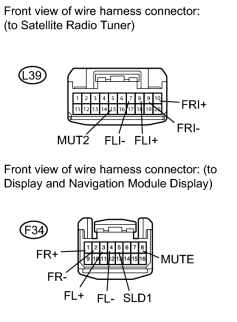

CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - DISPLAY AND NAVIGATION MODULE DISPLAY) |
|
(a) Disconnect the L39 tuner connector. |
(b) Disconnect the F34 display connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
L39-15 (MUT2) - F34-8 (MUTE) |
Always |
Below 1 Ω |
|
L39-8 (FLI+) - F34-3 (FL+) |
Always |
Below 1 Ω |
|
L39-7 (FLI-) - F34-4 (FL-) |
Always |
Below 1 Ω |
|
L39-10 (FRI+) - F34-1 (FR+) |
Always |
Below 1 Ω |
|
L39-9 (FRI-) - F34-2 (FR-) |
Always |
Below 1 Ω |
|
F34-5 (SLD1) - Body ground |
Always |
10 kΩ or higher |
|
L39-15 (MUT2) - Body ground |
Always |
10 kΩ or higher |
|
L39-8 (FLI+) - Body ground |
Always |
10 kΩ or higher |
|
L39-7 (FLI-) - Body ground |
Always |
10 kΩ or higher |
|
L39-10 (FRI+) - Body ground |
Always |
10 kΩ or higher |
|
L39-9 (FRI-) - Body ground |
Always |
10 kΩ or higher |
|
|
|
