INSPECTION
1. INSPECT FUEL SENDER GAUGE ASSEMBLY

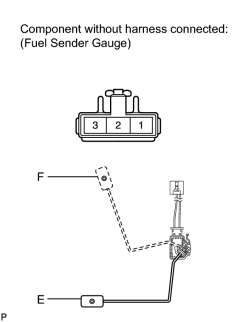

(a) Check that the float moves smoothly between F and E.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
2 - 3 |
Float level is F (upper) |
12 to 18 Ω |
|
Float level is E (lower) |
405 to 415 Ω |
If the result is not as specified, replace the fuel sender gauge assembly.
|
|
