| Last Modified: 11-27-2007 | 1.6 U | |
| Service Category: Vehicle Exterior | Section: Window/Glass | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002ZCC00BX |
| Title: WINDOW / GLASS: WINDSHIELD DEICER SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||

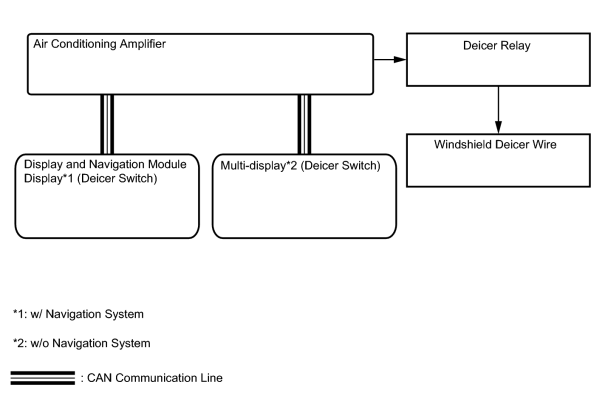

SYSTEM DIAGRAM
Communication Table
|
Transmitter |
Receiver |
Signal |
Line |
|---|---|---|---|
|
Display and navigation module display*1 |
Air conditioning amplifier |
Windshield deicer switch signal |
CAN |
|
Multi-display*2 |
Air conditioning amplifier |
Windshield deicer switch signal |
CAN |
*1: w/ Navigation System
*2: w/o Navigation System
|
|
