ON-VEHICLE INSPECTION
1. INSPECT SEAT HEATER CONTROL SUB-ASSEMBLY (for Front Side)

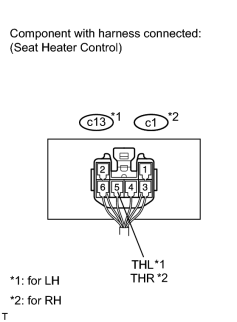

(a) Disconnect the c13 and c1 heater control connectors.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
for LH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
c13-6 (E) - Body ground |
Always |
Below 1 Ω |
for RH
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
c1-6 (E) - Body ground |
Always |
Below 1 Ω |
If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
for LH
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
c13-1 (SWL) - c13-6 (E) |
Engine switch on (IG), seat heater switch off |
Below 1 V |
|
Engine switch on (IG), seat heater switch on |
11 to 14 V |
|
|
c13-4 (B) - c13-6 (E) |
Engine switch off |
Below 1 V |
|
Engine switch on (IG) |
11 to 14 V |
for RH
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
c1-1 (SWR) - c1-6 (E) |
Engine switch on (IG), seat heater switch off |
Below 1 V |
|
Engine switch on (IG), seat heater switch on |
11 to 14 V |
|
|
c1-4 (B1) - c1-6 (E) |
Engine switch off |
Below 1 V |
|
Engine switch on (IG) |
11 to 14 V |
If the result is not as specified, there may be a malfunction on the wire harness side.
(d) Connect the c13 and c1 heater control connectors.
|
(e) Measure the voltage according to the value(s) in the table below. Standard Voltage:
If the result is not as specified, the seat heater control may have a malfunction. |
|
|
