Home › Drivetrain › Transfer/4wd/Awd › JF2A TRANSFER / 4WD / AWD: TRANSFER OIL
Last Modified: 11-27-2007 1.6 A
Service Category: Drivetrain Section: Transfer/4wd/Awd
Model Year: 2008 Model: LX570 Doc ID: RM0000030S6006X
Title: JF2A TRANSFER / 4WD / AWD: TRANSFER OIL: REPLACEMENT (2008 LX570)

REPLACEMENT

1. DRAIN TRANSFER OIL

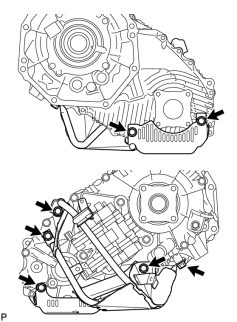

(a) Remove the 2 bolts and transfer dynamic damper.

(b) Remove the 4 bolts and transfer heat insulator.

(c) Remove the 7 bolts and lower transfer case protector.

(d) Remove the filler plug and gasket.

(e) Remove the drain plug and gasket, and drain the transfer oil.

2. ADD TRANSFER OIL

(a) Install a new gasket to the drain plug and then install the plug.

Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)


(b) Add oil so that the oil level is between 0 to 5.0 mm (0 to 0.197 in.) from the bottom lip of the filler plug hole.

NOTICE:

  • Add oil slowly.
  • Add oil a little at a time, waiting several minutes between each addition of oil.

(c) Wait approximately 5 minutes and check that the oil level has not changed.

(d) Install a new gasket to the filler plug and then install the plug.

Torque: 37 N·m (377 kgf·cm, 27 ft·lbf)


(e) Install the lower transfer case protector with the 7 bolts.

Torque: 14 N·m (139 kgf·cm, 10 ft·lbf)


(f) Install the transfer heat insulator with the 4 bolts.

Torque: 30 N·m (306 kgf·cm, 22 ft·lbf)


(g) Install the transfer dynamic damper with the 2 bolts.

Torque: 12 N·m (122 kgf·cm, 9 ft·lbf)
