| Service Category: Drivetrain | Section: Automatic Transmission/Transaxle | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM00000315N00AX |
| Title: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM (2008 LX570) | ||
SYSTEM DIAGRAM

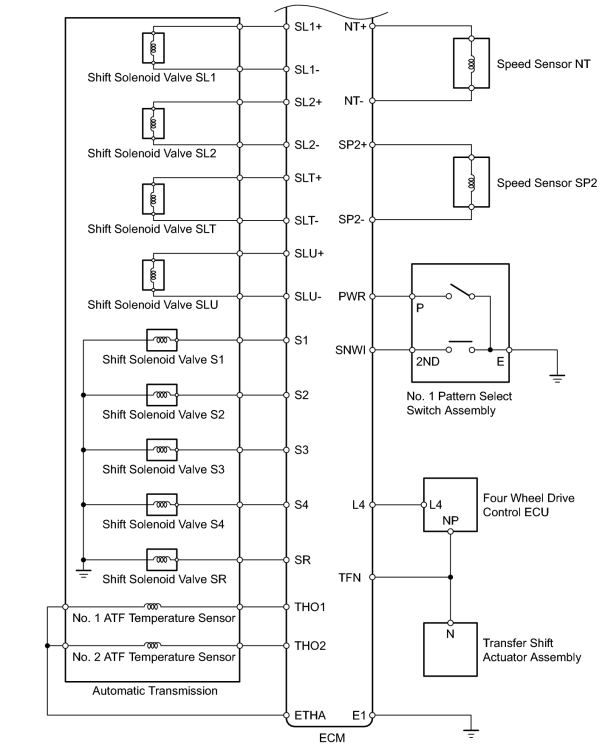

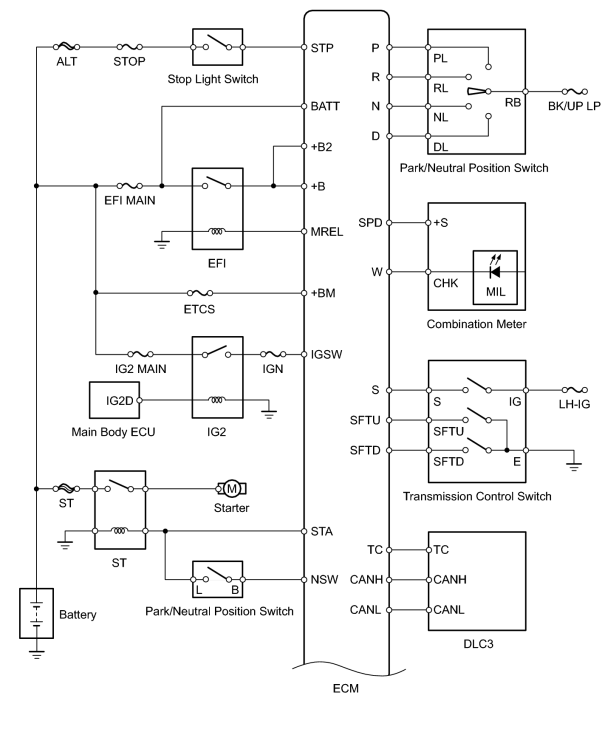

The configuration of the electronic control system in the AB60F automatic transmission is as shown in the following chart.
|
|
