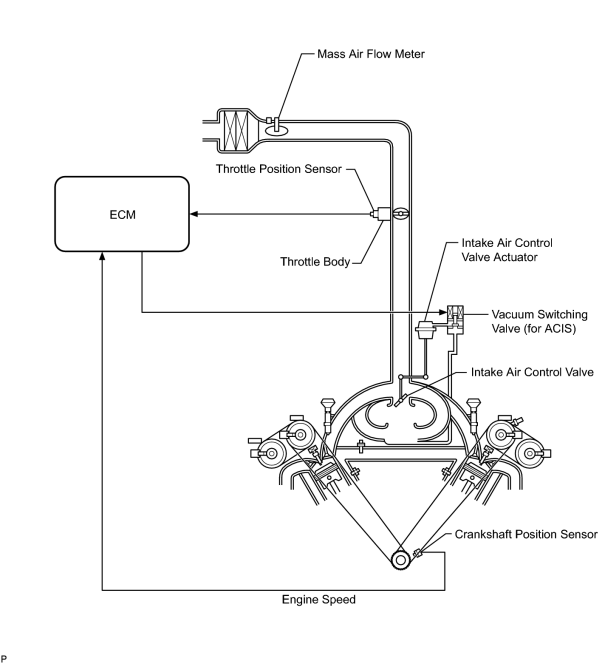

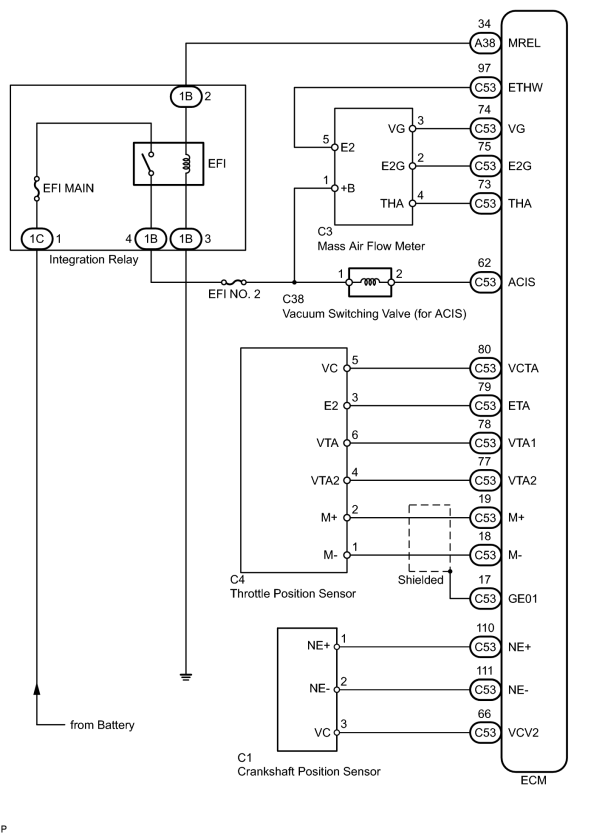

3UR-FE INTAKE / EXHAUST: INTAKE SYSTEM: SYSTEM DIAGRAM (2008 LX570)

Home › Engine/Hybrid System › Intake/Exhaust › 3UR-FE INTAKE / EXHAUST: INTAKE SYSTEM

Last Modified: 11-27-2007		1.6 U
Service Category: Engine/Hybrid System	Section: Intake/Exhaust
Model Year: 2008	Model: LX570	Doc ID: RM0000031GN005X
Title: 3UR-FE INTAKE / EXHAUST: INTAKE SYSTEM: SYSTEM DIAGRAM (2008 LX570)
