| Title: 3UR-FE ENGINE CONTROL: MASS AIR FLOW METER: INSPECTION (2008 LX570) | ||
INSPECTION
1. INSPECT MASS AIR FLOW METER
(a) Check the output voltage.
|

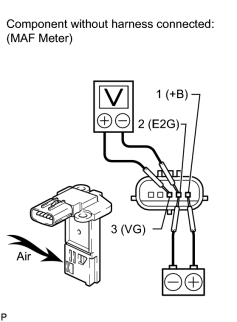

(1) Apply battery voltage across terminals 1 (+B) and 2 (E2G). NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur. |
(2) Using a voltmeter, connect the positive (+) tester probe to terminal 3 (VG), and the negative (-) tester probe to terminal 2 (E2G).
(3) Blow air into the MAF meter and check that the voltage fluctuates.
If the result is not as specified, replace the MAF meter.
|
(b) Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration. OK: There is no foreign matter. If the result is not as specified, replace the mass air flow meter. |
(c) Check the IAT sensor.

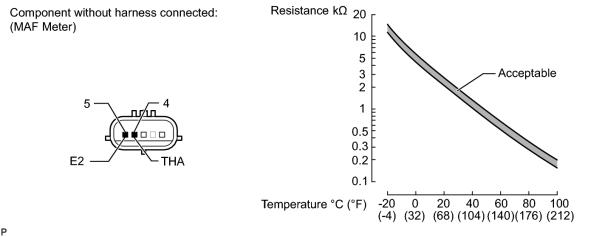

(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
4 (THA) - 5 (E2) |
-20°C (-4°F) |
12.5 to 16.9 kΩ |
|
20°C (68°F) |
2.19 to 2.67 kΩ |
|
|
60°C (140°F) |
0.50 to 0.68 kΩ |
If the result is not as specified, replace the MAF meter.
|
|
