3UR-FE BATTERY / CHARGING: CHARGING SYSTEM
Last Modified:
11-27-2007
1.6 U
Service Category:
Power Source/Network
Section:
Battery/Charging
Model Year:
2008
Model:
LX570
Doc ID:
RM00000322D005X
Title:
3UR-FE BATTERY / CHARGING: CHARGING SYSTEM: SYSTEM DIAGRAM (2008 LX570)

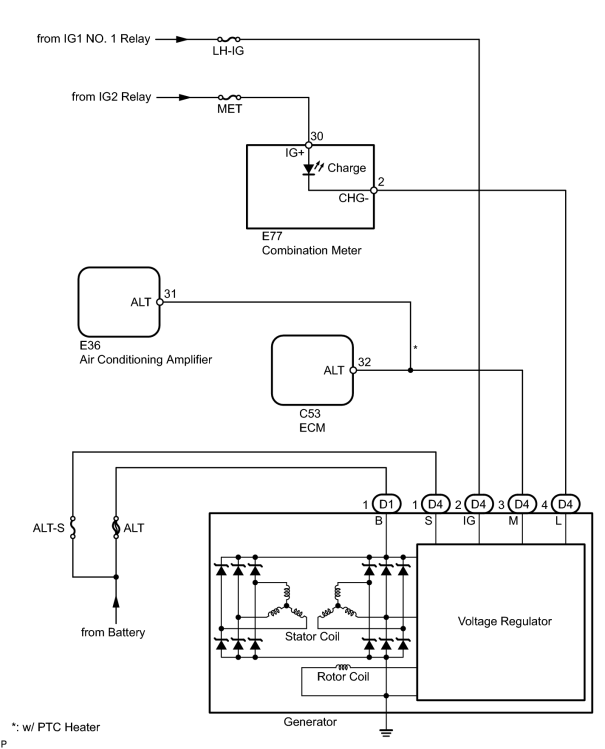

SYSTEM DIAGRAM
