Title: PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: SYSTEM DIAGRAM (2008 LX570)

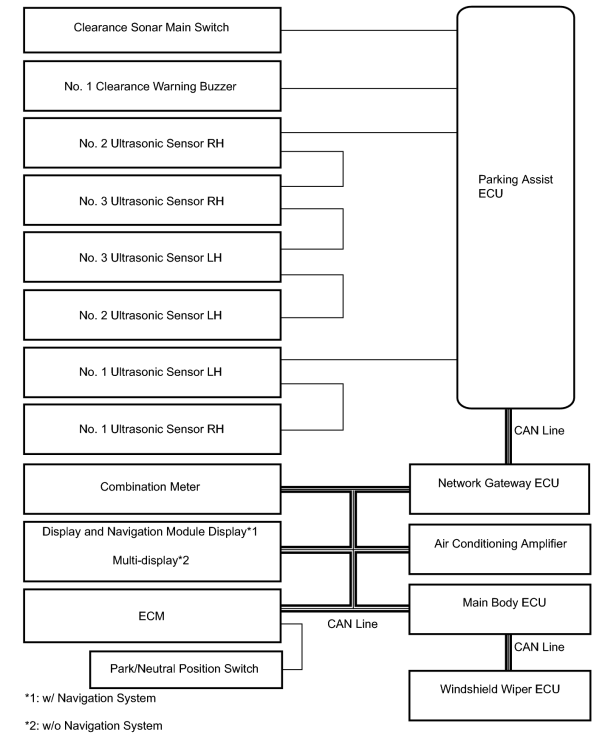

SYSTEM DIAGRAM



Communication Table

Sender ECU

Receiver ECU

Signal

Line

Combination Meter

Parking Assist ECU

Vehicle speed signal

CAN

ECM

Parking Assist ECU

Shift position signal

CAN

Air Conditioning Amplifier

Parking Assist ECU

Outside temperature

CAN

Main Body ECU

Parking Assist ECU
  • Dimmer signal
  • Destination signal
  • Steering information

CAN

Windshield Wiper ECU

Parking Assist ECU

Wiper status signal

CAN

Parking Assist ECU
  • Combination Meter
  • Display and Navigation Module Display*1
  • Multi-display*2

Ultrasonic sensor detection signal

CAN

*1: w/ Navigation System

*2: w/o Navigation System
