- The center airbag sensor receives an open circuit signal, a short to ground signal or a short circuit to ground signal or a short circuit to B+ signal in the indicator light circuit for 2 seconds.
- A combination meter malfunction.
- A center airbag sensor malfunction.
| Last Modified: 11-27-2007 | 1.6 C | |
| Service Category: Vehicle Interior | Section: Supplemental Restraint Systems | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM0000038B4003X |
| Title: SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: DESCRIPTION (2008 LX570) | ||
|
DTC |
B1662/45 |
Indicator Light Circuit Malfunction |
DESCRIPTION
The indicator light circuit consists of the center airbag sensor and the combination meter.
When the center airbag sensor detects a malfunction in the SRS airbag system, the SRS warning light comes on to inform the driver. It also comes on when the source voltage drops, and automatically goes off in approximately 10 seconds after the source voltage returns to normal (DTC is not stored).
The SRS warning light comes on for 6 seconds after the engine switch is turned on (IG) and goes off if the system is normal.
When an open circuit is detected, such as when the connector between the combination meter and the center airbag sensor is disconnected, the SRS warning light remains on even when approximately 6 seconds elapsed after the engine switch is turned on (IG).
DTC B1662/45 is stored when a malfunction is detected in the indicator light circuit.
|
DTC Code |
DTC Detection Condition |
Trouble Area |
|---|---|---|
|
B1662/45 |
When one of the following conditions is met: |
|

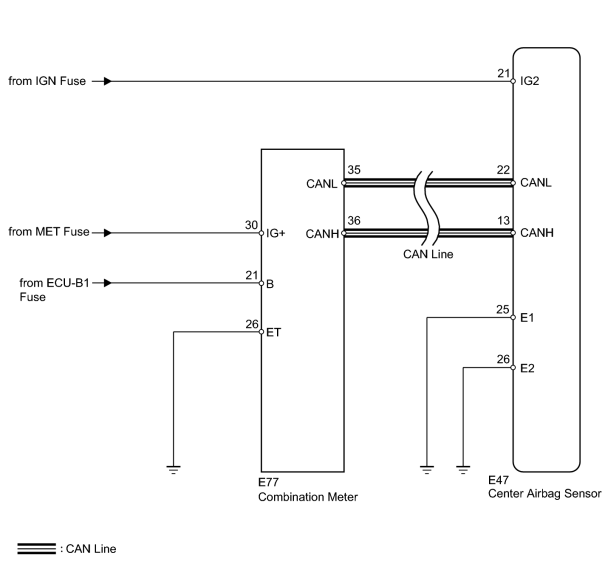

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
-
w/ Navigation system:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected
.
PROCEDURE
|
1. |
CHECK CAN COMMUNICATION SYSTEM |
(a) Check if a CAN communication DTC is output
.
Result
|
Result |
Proceed to |
|---|---|
|
DTC is not output |
A |
|
DTC is output |
B |
|
|
2. |
CHECK BATTERY |
(a) Measure the voltage of the battery.
Standard voltage:
11 to 14 V
|
|
3. |
CHECK CONNECTORS |
(a) Turn the engine switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Check that the connectors are properly connected to the center airbag sensor and combination meter.
OK:
The connectors are properly connected.
|
|
4. |
CHECK HARNESS AND CONNECTOR (SOURCE VOLTAGE OF CENTER AIRBAG SENSOR) |
(a) Disconnect the connectors from the center airbag sensor.
(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(c) Turn the engine switch on (IG).
(d) Operate all the components of the electrical system (defogger, wipers, headlights, heater blower, etc.).
(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E47-21 (IG2) - E47-25 (E1) |
Engine switch on (IG) |
11 to 14 V |
|
E47-21 (IG2) - E47-26 (E2) |
Engine switch on (IG) |
11 to 14 V |
|
|
5. |
CHECK HARNESS AND CONNECTOR (SOURCE VOLTAGE OF COMBINATION METER) |
(a) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

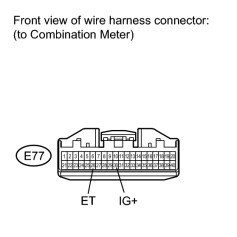

(b) Disconnect the E77 connector from the combination meter.
(c) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(d) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
E77-30 (IG+) - E77-26 (ET) |
Engine switch on (IG) |
11 to 14 V |
|
|
6. |
CHECK SRS WARNING LIGHT (SHORT TO GROUND) |
(a) Turn the engine switch off.
(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
(c) Connect the connector to the combination meter.
(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
(e) Turn the engine switch on (IG).
(f) Check the SRS warning light condition.
OK:
After the primary check period, SRS warning light goes off for approximately 10 seconds and then remains on.
HINT:
The primary check period is approximately 6 seconds after the engine switch is turned on (IG).
|
|
|
